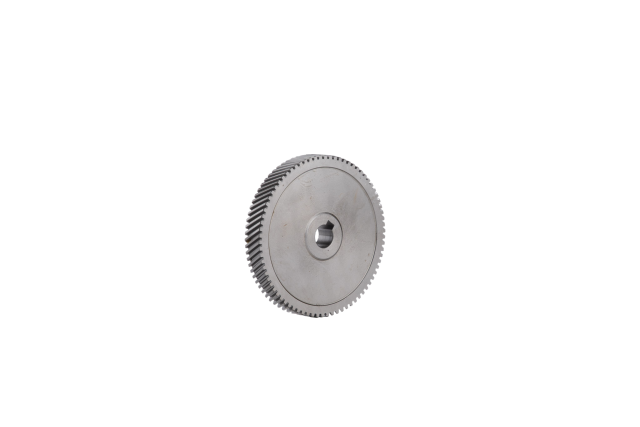

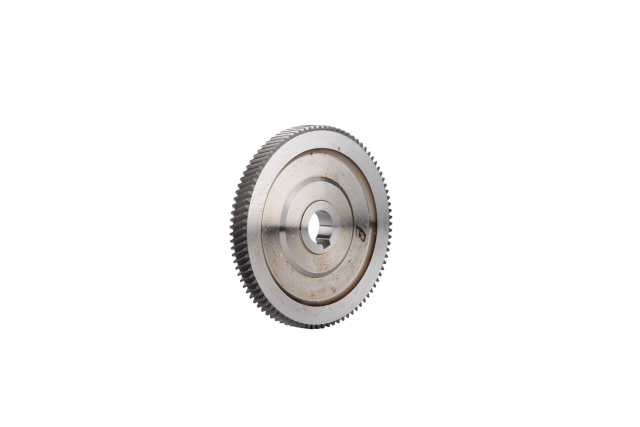

Helical Gear Plate

A helical gear plate is a disk-shaped gear component with teeth arranged at a helix angle to the axis, offering advantages of large contact ratio, smooth transmission, low noise, and high load capacity compared to spur gear plates.
  • Helical Gear Plate,Changzhou Yubao Transmission Technology Co., Ltd.,Helical Gear Plate
  • Helical Gear Plate,Changzhou Yubao Transmission Technology Co., Ltd.,Helical Gear Plate

Description

Product Overview

A helical gear plate is a disk-shaped gear component with teeth arranged at a helix angle to the axis, offering advantages of large contact ratio, smooth transmission, low noise, and high load capacity compared to spur gear plates. The contact line gradually extends from the tooth end across the full face width during helical meshing, with multiple teeth in contact simultaneously for uniform load distribution. Particularly suited for medium-high speed applications with strict noise and vibration requirements, such as precision reducers, servo drive systems, EV reduction gearboxes, and quiet industrial equipment.

Yubao Transmission Technology uses CNC gear hobbing machines to produce helical gear plates with helix angles from 0–35°, normal module range 0.5–5.0mm. After worm wheel grinding, accuracy reaches DIN Grades 4–6 with tooth surface roughness Ra≤0.4μm. Precise control of axial pitch deviation (Fβ) and tooth alignment error ensures uniform contact pattern distribution across the tooth face, reducing transmission noise by 3–5dB compared to spur gear plates. Left-hand/right-hand helix configurations are available per transmission system layout requirements, with mating helical gear design services provided.


Technical Parameters

Gear Parameters

Parameter Symbol Unit Value/Range Tolerance Notes
Outer Diameter (Tip) da mm 50–500 h11 Tip circle diameter
Normal Module mn mm 0.5–5.0 Standard module series
Number of Teeth z Customized Determined by transmission ratio
Normal Pressure Angle αn ° 15°–30° Typically 20°
Pitch Diameter d mm Customized d = mn×z/cosβ
Helix Angle β ° 0–35° ±0.5° Typically 8°–25°
Hand of Helix Left/Right Must match mating gear
Face Width b mm 5–200 ±0.05 Must satisfy b×sinβ>mn
Accuracy Grade DIN/ISO Grade 5 Grinding achieves DIN 4–6
Axial Pitch Deviation μm Per DIN standard ± Key control parameter
Face Runout mm 0.02 Relative to bore datum
Radial Runout mm 0.02 Tip relative to bore

Materials & Heat Treatment

Parameter Symbol Unit Value/Range Tolerance Notes
Tooth Hardness HRC 58–62 After carburizing
Core Hardness HRC 30–45 Toughness assurance
Material Grade Customized Common: 42CrMo, 20CrMnTi, 16MnCr5
Heat Treatment Carburizing/Nitriding Determined by application
Tooth Surface Roughness Ra μm 0.4–0.8 After grinding

Machining Capabilities

Process Equipment Range Accuracy Achieved
Helical Hobbing Ningjiang YK3610V/Chongqing SKS3112 Helix 0–35°, module 0.5–8mm DIN Grades 6–7
Helical Grinding Qinchuan YKZ7230 Worm Wheel Grinder Helix 0–35°, module 0.5–3mm DIN Grades 4–6
Heat Treatment Carburizing/Nitriding Case depth 0.5–1.5mm Surface HRC 58–62
Gear Inspection Gleason 300GMS Gear Tester Profile/Alignment/Axial Pitch 100% inspection
Geometric Inspection HEXAGON CMM/Mahr Roundness Tester Runout/Coaxiality 0.1μm level

Helix Angle Selection Guide

Application Recommended Helix Angle Characteristics
General Reducers 8°–15° Improved smoothness, controllable axial force
Precision Servo Transmission 15°–25° Low noise, high contact ratio
Quiet Environment Applications 20°–30° Lowest noise, bearings must handle higher axial load
High-Speed Transmission 10°–20° Balance of smoothness and axial force

Important Note: Helical gear transmission produces axial force Fa = Ft×tanβ. Bearing selection must account for axial load capacity. Angular contact ball bearings or tapered roller bearings are recommended.


Comparison: Spur vs. Helical Gear Plate

Parameter Spur Gear Plate Helical Gear Plate
Transmission Smoothness Moderate Excellent
Noise Level Medium Low (3–5dB reduction)
Contact Ratio 1–2 2–5
Axial Force None Present
Load Capacity Moderate High
Machining Cost Lower Higher
Applicable Speed Medium-Low Medium-High

Product Features

  • Ultra-Smooth Transmission: Contact ratio of 2–5 with multiple simultaneous tooth engagements, minimal impact
  • Low Noise Operation: 3–5dB noise reduction vs. equivalent accuracy spur gears, meeting quiet requirements
  • High Load Capacity: Long contact lines reduce unit loading, strong anti-pitting capability
  • High-Precision Manufacturing: Grinding accuracy DIN 4–6 with strict axial pitch deviation control
  • Reversible Rotation: Left-hand/right-hand helix customizable for different transmission layouts

Typical Applications

Application Sector Specific Use Typical Parameters
Precision Reducers Planetary reducer internal ring/sun gear Module 1–3mm, helix 15°–20°, DIN 5
Electric Vehicles E-drive main reducer gears Module 1.5–3mm, helix 20°–25°
Industrial Automation Servo motor配套 gear plates Module 0.5–2mm, helix 15°, DIN 4–5
Quiet Equipment Medical/office equipment transmission Module 0.5–1.5mm, large helix for low noise
Machine Tools High-precision spindle transmission Module 1.5–3mm, helix 12°–18°, DIN 4
