Small radial error can become a sound the customer hears
Straightness, journal finish and concentric features need a controlled datum chain so the shaft does not introduce avoidable vibration.
A quiet appliance motor depends on parts most users never see. Shaft runout, straightness, surface condition and interface fit can return as vibration, noise or inconsistent assembly once the motor is installed.
YUBAO manufactures drawing-based motor shafts, dryer shafts, spline shafts, shaft sleeves and compact gear shafts for appliance motor and small-drive OEM projects.
Send an Appliance Motor Drawing
Motor Shaft
Dryer Shaft
Spline Shaft
Shaft Sleeve
Compact Gear ShaftHousehold appliances amplify small mechanical errors: a thin enclosure, long operating cycle or rigid mounting path can make shaft runout and rough interfaces audible.
We review the drawing around rotation, torque transfer, assembly fit and repeat production, then place machining and inspection effort where the finished motor actually depends on it.
Straightness, journal finish and concentric features need a controlled datum chain so the shaft does not introduce avoidable vibration.
Short shafts often combine several fits in little space. Tolerance relationships matter more than any one dimension in isolation.
Tooling, in-process checks and final inspection must make later lots follow the same route and critical references.
A practical route protects functional geometry while avoiding tolerances and operations that add cost without improving assembly or use.
Every group below sits inside YUBAO’s confirmed manufacturing scope and is produced to the customer drawing, mating interfaces and required process route.
Turned and ground shafts with journals, shoulders, flats, threads and press-fit features controlled to the drawing.

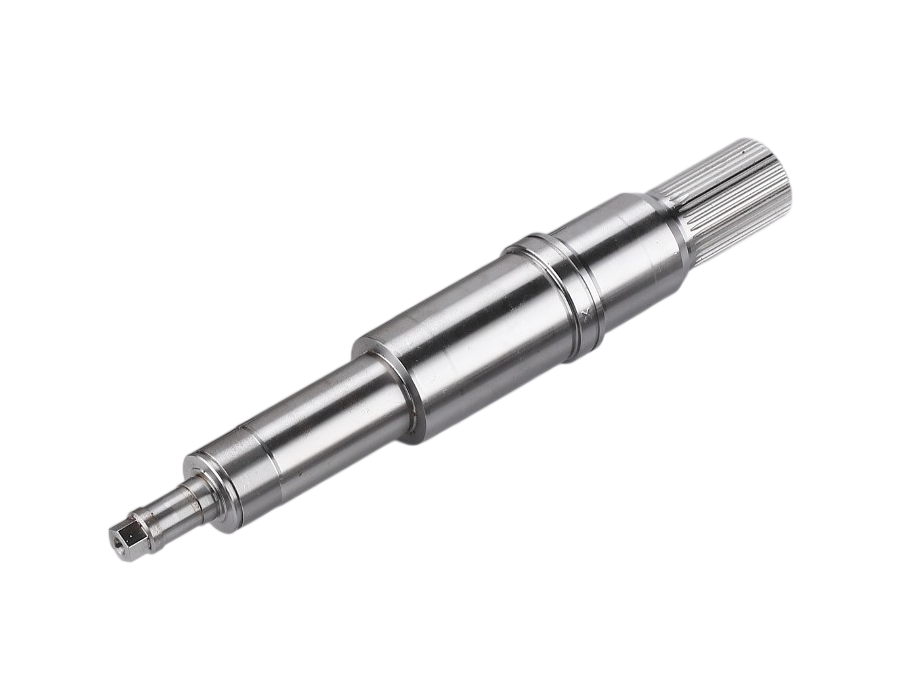

View motor shafts →Long or stepped shafts for dryer motor and drum-drive layouts where straightness, runout and surface condition matter.
View dryer shafts →External or internal spline features produced for compact torque transfer, controlled engagement and repeatable fit.

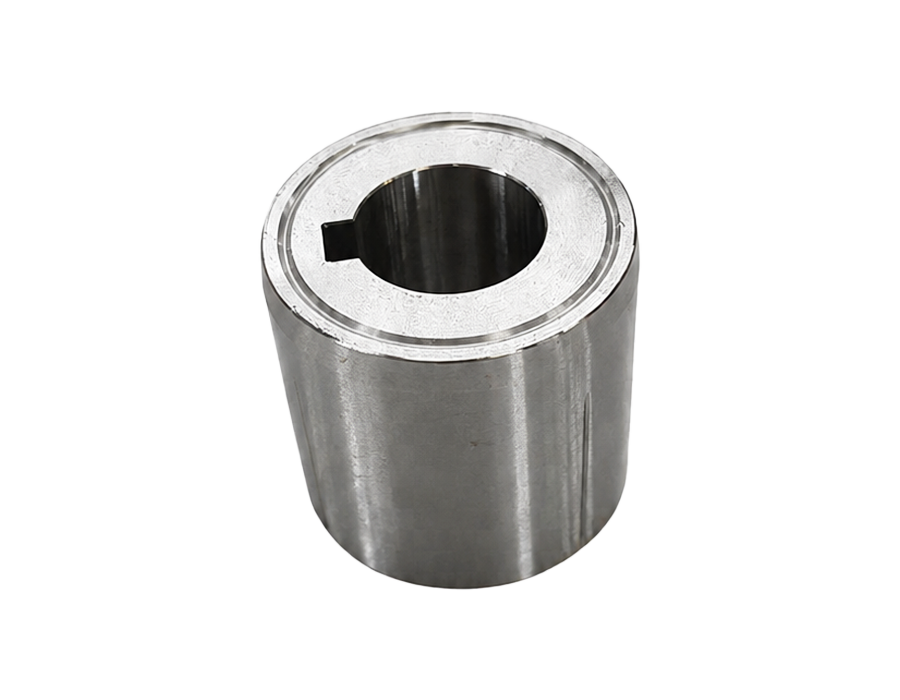

View spline shafts →Drawing-specific sleeves and bushings for spacing, locating, wear interfaces and compact shaft assemblies.
View shaft sleeves →Integrated pinion and shaft parts for small geared motors where tooth quality and runout affect sound and wear.
View gear shafts →Automatic turning, CNC machining, spline or gear generation, grinding, treatment coordination and inspection are connected around the critical references in the released drawing.
01Creates shaft steps, shoulders, threads, flats and press-fit interfaces with a repeatable setup strategy.
02Finishes outside diameters, journals and runout-sensitive surfaces tied to quiet rotation and fit.
03Generates pinions and compact gear shafts while preserving tooth-to-shaft alignment.
04Completes spline, bore, shoulder and locating features for compact torque-transfer assemblies.
05Coordinates wear, corrosion protection and drawing-defined surface requirements before final release.
06Defines in-process checks, final evidence, packaging control and repeat-lot traceability.
A small shaft can meet its length and diameter while still creating problems if runout, straightness or mating features drift. Inspection follows the relationships that influence rotation and assembly—not dimensions selected only because they are easy to measure.
The plan connects in-process checks, final verification, treatment records and packaging control so later orders can return to the same approved references.
Journals, shoulders, bores, splines and gear features are checked in the relationships that locate the part.
Rotating surfaces are verified from agreed references where the drawing identifies them as critical.
Engagement, profile, pitch and runout-related features are inspected where required by the part drawing.
Material certificates, hardness results and surface-treatment records can remain linked to the batch.
In-process checks, final inspection, CMM and gear measurement are selected according to part risk.
Part separation, rust prevention and retained records protect shipment and repeat-lot follow-up.
Cost improves when the production route distinguishes geometry that affects rotation, torque transfer and assembly from features that do not change the finished motor’s function.
Each checkpoint answers a practical question before the next begins, keeping engineering, quality and purchasing aligned on what has been confirmed.
Drawing, application, speed, mating fits and expected demand.
Scope, material, process, inspection and quotation.
Tooling, machining and controlled process execution.
Agreed geometry, functional references and records.
Part separation, rust prevention and delivery coordination.
Approved records guide later lots and quality follow-up.
Send the drawing or sample together with the application, motor speed, mating parts, noise or balance concerns, material, finish, quantity, packaging requirements and estimated annual demand.
Yes. YUBAO manufactures drawing-defined spline shafts, sleeves and bushings, with engagement, fit, concentric relationships, material and finish reviewed before sampling.
Yes. Automatic turning, CNC machining, grinding and planned inspection can be combined according to part complexity, tolerance and annual volume.
A sample can support initial review, but a confirmed drawing, material, finish, critical dimensions and authorization are normally required before repeat production.
Surface protection and packaging are selected from material, finish, storage time, transport conditions and customer requirements.
Yes. A project can move through drawing review, samples or a controlled trial lot before the repeat-production route is approved.
