Precision Shafts and Gear Components for Industrial Servo Motors

A servo axis can be electrically accurate and still lose performance through the mechanical stack. Shaft inertia, runout, welded-joint distortion and interface fit can show up as vibration, noise or unstable positioning.

YUBAO manufactures custom motor shafts, hollow shafts, friction-welded shafts, pinion gears and compact interface parts for servo motors and automation drives.

Send a Servo Motor Drawing
Low-inertia shaft optionsEncoder and brake interfacesSample-to-batch control

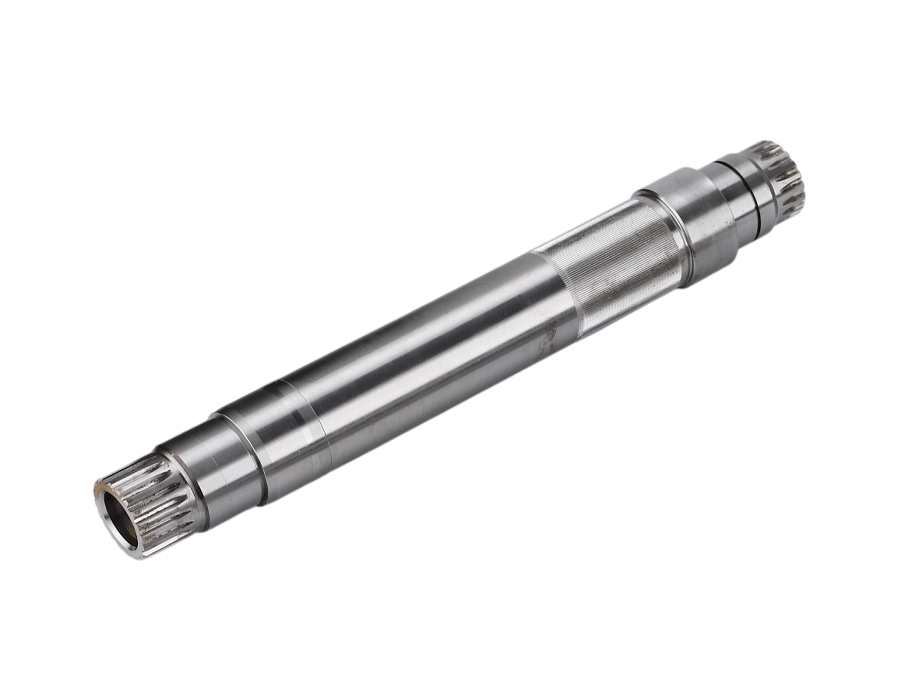

Custom servo motor shaftCustom Shaft

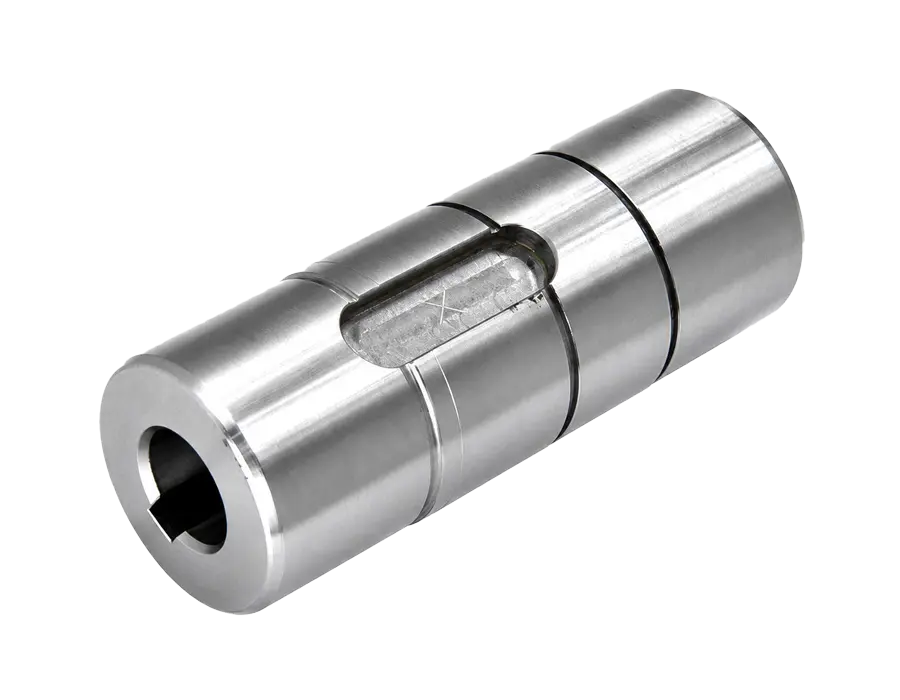

Hollow shaft for a low-inertia servo motorHollow Shaft

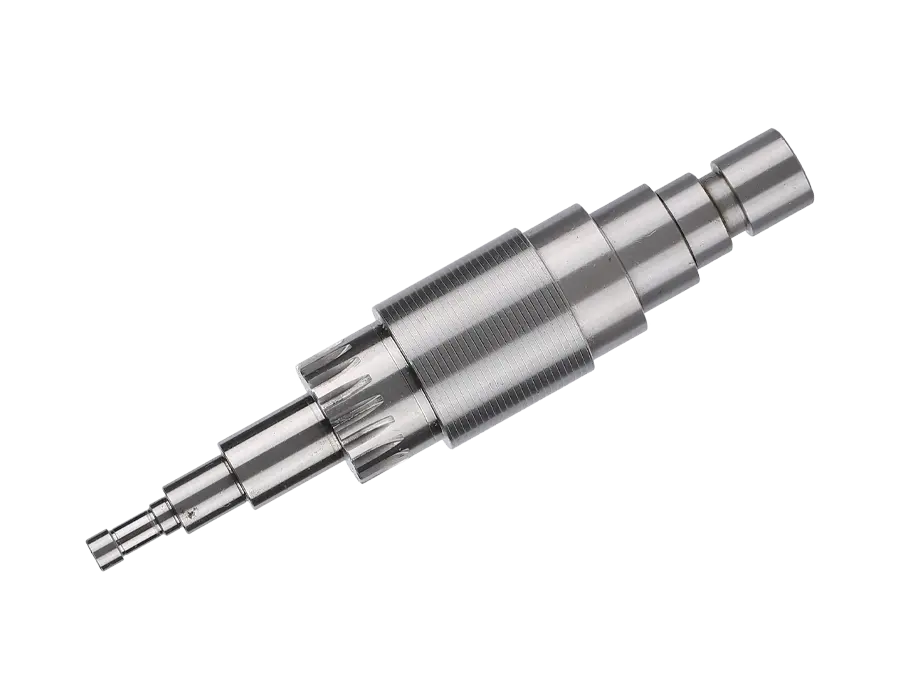

Friction-welded shaft for an industrial servo motorWelded Shaft
Precision pinion or small gear disc for a servo drivePinion / Gear Disc
Custom encoder or brake interface sleeveInterface Sleeve
Application Challenges

Low Inertia Only Works When Runout and Interface Fits Stay Under Control

Servo motor parts are small, but the mechanical errors are not. The process route has to protect the features that influence acceleration, feedback accuracy and assembly stability.

04servo-drive risks
reviewed before quoting
01 / INERTIA

Lower rotating mass

Hollow geometry and material distribution must reduce inertia without weakening critical journals or interfaces.

02 / RUNOUT

Stable concentricity

Bearing seats, encoder references and gear features need a controlled datum chain from machining through final inspection.

03 / INTERFACE

Encoder and brake fit

Non-standard threads, shoulders and sleeves must assemble cleanly without creating axial or radial error.

04 / REPEATABILITY

Sample-to-batch consistency

The approved sample only matters when the same machining, welding, treatment and inspection route can be repeated.

Servo Drive Component Solutions

Mechanical Components Built Around the Servo Axis

Five drawing-based component groups focused on inertia, runout, torque transfer and compact assembly interfaces.

Custom servo motor shaft

Custom Servo Shafts

Stepped shafts, keyways, threads, splines and special interfaces machined around your motor and feedback layout.

View custom shafts →
Hollow motor shaft

Hollow Motor Shafts

Low-inertia shaft structures with wall thickness, journals and datum features reviewed as one production route.

View hollow shafts →
Friction-welded servo motor shaft

Friction-Welded Shafts

Different materials or geometries combined by welding, followed by machining and inspection of the critical finished features.

View welded shafts →
Servo motor pinion and gear disc

Pinions & Gear Discs

Compact straight or helical gear features where tooth quality, runout and surface condition affect motion performance.

View gear components →
Encoder and brake interface sleeve

Interface Sleeves

Drawing-specific sleeves and adapters for encoder, brake, coupling or compact motor assembly interfaces.

View interface parts →
Manufacturing Capabilities

A Process Route Built for Inertia, Runout and Gear Accuracy

Turning, hollow geometry, welding, gear cutting, grinding and treatment are planned around the same datum and assembly requirements.

Precision Turning01

Precision Turning

For stepped shafts, threads, shoulders and compact feedback interfaces.

Hollow & Internal Features02

Hollow & Internal Features

For hollow shafts and internal geometry where wall control and concentricity matter.

Friction Welding03

Friction Welding

For combined material or geometry routes followed by finish machining.

Gear Hobbing & Shaping04

Gear Hobbing & Shaping

For pinions, integrated gear shafts and small gear discs.

Grinding & Runout Control05

Grinding & Runout Control

For journals, encoder references and surfaces tied to rotational accuracy.

Treatment & Surface Protection06

Treatment & Surface Protection

For wear, hardness, dimensional stability and welded-blank protection requirements.

CMM inspection of a precision servo motor shaft
Quality Assurance

Runout, Gear Data and Interface Fits Checked Before Release

Inspection follows the features that influence feedback accuracy, vibration, assembly fit and repeat production.

ISO 9001 & IATF 16949

Certified systems support controlled OEM production.

CMM & Runout Inspection

Datums, journals and concentric relationships are checked.

Full-Dimension Check

Drawing-critical interfaces and fit features are verified.

Material, Weld & Treatment

Material and process records stay linked to the project.

Batch Traceability

Inspection records support repeat orders and quality follow-up.

Gear profile inspection for a servo drive component
Engineering Support

Reduce Inertia Without Creating a New Fit Problem

Early review connects the motor layout, feedback interfaces and manufacturing route before a light-looking design becomes difficult to repeat.

  • DFM and datum reviewWe review geometry, tolerances and datum logic against the proposed production route.
  • Hollow-shaft reviewWall thickness, internal transitions and finish-machining access are checked together.
  • Weld-route reviewJoint location, post-weld machining and distortion-sensitive features are identified early.
  • Encoder and brake interfacesSpecial shoulders, threads, sleeves and axial locations are reviewed for assembly fit.
  • Prototype and sample supportSamples can be checked against agreed dimensions, runout and functional interfaces.
Engineering review of servo motor shaft and gear components
Project Workflow

A Controlled Route From Servo Drawing to Repeat Supply

Each stage closes a specific mechanical risk before the project moves forward.

01 / Input

Share the drawing

Application, part data and annual demand.

02 / Review

Confirm the route

Scope, process, risks and quotation.

03 / Build

Manufacture the sample

Controlled machining and process execution.

04 / Verify

Inspect and approve

Agreed dimensions, records and assembly checks.

05 / Deliver

Pack and ship

Protected packing and delivery coordination.

06 / Repeat

Support repeat supply

Production follow-up and ongoing quality control.

FAQ

Frequently Asked Questions

What should I send for a useful servo motor quotation?

Send the drawing or sample together with speed, torque, duty cycle, target inertia, encoder or brake interface data, material, treatment, quantity and estimated annual demand.

Can YUBAO manufacture hollow servo motor shafts?

Yes. Hollow shafts are manufactured to the drawing, with wall thickness, datum structure, machining access and critical fit requirements reviewed before sampling.

How is distortion controlled on welded shafts?

The route can include joint-location review, welding control, post-weld machining and inspection of the finished datum and runout features.

Can YUBAO support prototype or trial-batch projects?

Yes. Projects can begin with engineering review, samples or a controlled trial batch before repeat production is approved.

Can YUBAO machine encoder or brake interfaces?

YUBAO can manufacture drawing-defined shafts, sleeves and adapter features. Encoders, brakes and electronic control components are not manufactured by YUBAO.

Which materials and treatments are available?

The material, heat treatment and surface-protection route is selected from the drawing, speed, load, wear and dimensional-stability requirements.

Start a Servo Motor Project

Turn the Mechanical Stack Into a Stable Production Part

Send your drawing, sample or interface requirements. We will review inertia-sensitive geometry, datum relationships and the manufacturing route before preparing a useful response.

Send a Servo Motor Drawing Hollow shaft for an industrial servo motor
