A rail door repeats the same short movement cycle after cycle: start under resistance, reverse without shock, reach position and remain dependable in a compact mechanism. The mechanical drive components have to preserve that motion across production lots and service replacements.
YUBAO manufactures drawing-based precision shafts, spline shafts, gear shafts, gear wheels and selected gearbox units for passenger-door, platform-door and related rail access projects.
Send a Rail Door Drive Drawing
Precision Shaft
Spline Shaft
Gear Shaft
Gear
Gearbox UnitPassengers see a door open and close. The mechanism experiences starting resistance, rapid reversals, compact interfaces and repeated positioning—all through a small group of shafts, gears and fits.
YUBAO reviews the supplied drawing around torque transfer, alignment, clearance and repeat production, then connects the machining route and inspection plan to the features the customer has identified as functional.
Door seals, guides and external conditions can raise the load at the start of travel. Shaft shoulders, splines and gear interfaces must carry the drawing-defined duty without introducing a weak link.
Gear mesh and coupling fits need enough working clearance without turning each reversal into impact, excess lost motion or a different positioning response.
Runout, perpendicularity and the relationship between locating surfaces influence tooth contact, vibration and wear after the components enter the operator.
Material, treatment, fits, inspection references and packaging need a repeatable baseline so a service or replenishment lot does not create a new assembly condition.
The page stays within YUBAO’s established manufacturing range. Each product is made to the customer drawing and reviewed around its mating interfaces, process route and inspection requirements.
Motor and transmission shafts with drawing-defined journals, shoulders, threads and coupling features held to a common datum plan.
View precision shafts →Torque-transfer shafts for compact couplings where engagement, fit, concentricity and adjacent locating surfaces have to work together.
View spline shafts →Integrated gear-and-shaft parts that reduce separate interfaces inside compact operators while preserving the alignment defined by the drawing.

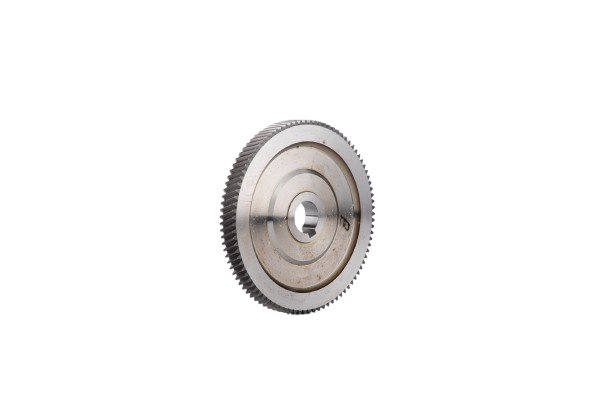

View gear shafts →Spur, helical and drawing-specific gears produced around the required tooth data, center distance, bore and mating-member relationship.
View gears →YUBAO-made shafts and gears combined with specified purchased parts for selected projects under an agreed assembly, inspection and run-in scope.
View gearbox units →Turning establishes the references. Spline and gear machining create the torque-transfer features. Grinding, treatment and inspection then have to preserve the relationships that matter after assembly.
01Establishes journals, shoulders, threads and the references used by meshing and assembly operations.
02Produces gear shafts and wheels around the specified tooth data, mating geometry and downstream finishing plan.
03Completes splines, keys, threads and coupling details while retaining the locating references used at assembly.
04Finishes journals and runout-sensitive surfaces that locate the shaft and influence gear alignment.
05Balances wear resistance and hardness with the dimensional stability needed before final finishing.
06Verifies the agreed drawing features and, for selected gearbox projects, supports defined fit, rotation and run-in checks.
A shaft or gear can pass isolated dimensions and still create assembly difficulty, noise or uneven contact when runout and mating relationships are considered together. Inspection therefore follows the functional datum chain in the released drawing.
The agreed scope follows the part through machining, treatment and final verification, giving engineering and purchasing a record tied to the approved component rather than a generic inspection checklist.
Journals, shoulders, bores and tooth references are checked in the relationships that locate the component.
Engagement, profile, lead, pitch, tooth runout and mating features are verified where the drawing requires them.
Rotating surfaces are measured from agreed references so misalignment is not hidden by isolated checks.
Material certificates, hardness results and treatment records can remain linked to the production batch.
Selected gearbox projects can include agreed fit, rotation and functional checks before release.
Retained records give replacement and repeat orders a controlled reference to the approved part.
A door-drive component cannot be judged by one tolerance or tooth count. Early review connects shaft datums, gear data, clearances, mating parts and the repeat-supply plan before the production route is fixed.
Each checkpoint closes a practical question before the next begins, keeping engineering, quality and purchasing aligned on what has been confirmed.
Drawing, duty, ratio, load, interfaces and expected demand.
Scope, material, process, inspection and quotation.
Tooling, machining and controlled process execution.
Agreed geometry, datum relationships and records.
Protected packing for finished teeth, journals and fits.
Approved records guide replacement and repeat batches.
Send the component or assembly drawing, door-drive layout, ratio, speed, load, direction of travel, duty cycle, material, treatment, inspection requirements, quantity and estimated annual demand.
YUBAO manufactures drawing-based precision shafts, spline shafts, gear shafts, gear wheels and selected gearbox units. Final suitability is reviewed against the customer drawing and project requirements.
Selected projects can include YUBAO-made shafts and gears plus specified purchased components within an agreed assembly, inspection and run-in scope.
The route can combine datum review, controlled machining, grinding, dimensional inspection and assembly checks for the critical relationships in the drawing.
Projects may begin from an available drawing or sample. Dimensions, material, function and intellectual-property authorization must be confirmed before production.
No. YUBAO supplies drawing-based mechanical components and selected gearbox units. Final system validation, safety assessment and rail-industry certification remain with the door-system manufacturer.
